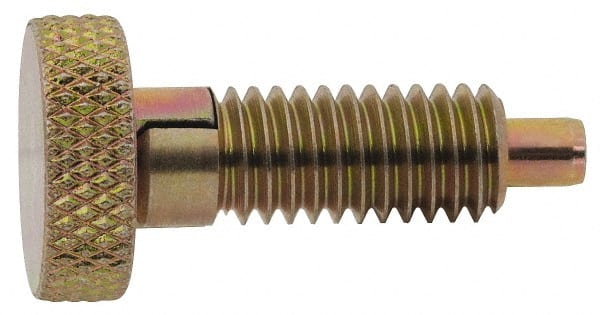

Vlier - M10x1.5, 3/4" Thread Length, 0.19" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 19mm Body Length, 0.97" Length Under Head/Shoulder, 0.22" Plunger Projection
Item #: 87881041
Brand: Vlier
Model #: SLFM10P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10x1.5 |
| Thread Length (mm) | 19.05 |
| Thread Length (Decimal Inch) | 0.7500 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Body Length (mm) | 19.00 |
| Length Under Head/Shoulder (mm) | 24.64 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9700 |
| Plunger Projection (mm) | 5.59 |
| Plunger Projection (Decimal Inch) | 0.2200 |
| Maximum Plunger Diameter (mm) | 4.83 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1900 |
| Initial End Force (N) | 2.22 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (N) | 13.34 |
| Final End Force (Lb.) | 3.00 |
| Locking Element | Yes |
| Plunger Length (mm) | 33.02 |
| Plunger Length (Decimal Inch) | 1.3000 |
| Head Diameter (mm) | 19.05 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head Height (mm) | 8.38 |
| Head Height (Decimal Inch) | 0.3300 |
| Hex Size (mm) | 10.00 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
