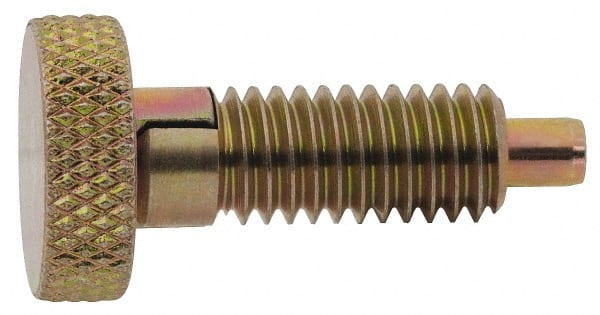

Vlier - M12x1.75, 0.65" Thread Length, 1/4" Max Plunger Diam, 0.5 Lb Init to 4 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 17mm Body Length, 0.9" Length Under Head/Shoulder, 1/4" Plunger Projection
Item #: 87881066
Brand: Vlier
Model #: SLFM12P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12x1.75 |
| Thread Length (mm) | 16.51 |
| Thread Length (Decimal Inch) | 0.6500 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Body Length (mm) | 17.00 |
| Length Under Head/Shoulder (mm) | 22.86 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9000 |
| Plunger Projection (mm) | 6.35 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (mm) | 6.35 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2500 |
| Initial End Force (N) | 2.22 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (N) | 17.80 |
| Final End Force (Lb.) | 4.00 |
| Locking Element | Yes |
| Plunger Length (mm) | 35.56 |
| Plunger Length (Decimal Inch) | 1.4000 |
| Head Diameter (mm) | 25.40 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Head Height (mm) | 12.70 |
| Head Height (Decimal Inch) | 0.5000 |
| Hex Size (mm) | 12.00 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
