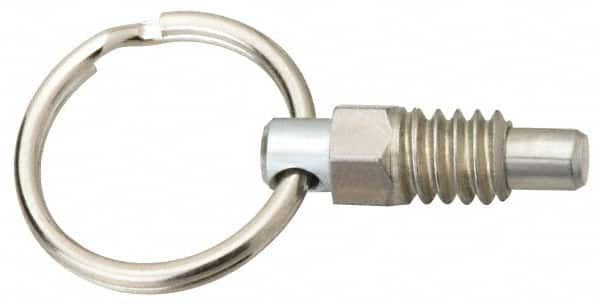

Vlier - M6x1.0, 0.31" Thread Length, 0.16" Plunger Diam, 0.19" Plunger Projection, 0.5 Lb Init to 2 Lb Final End Force, Steel Pull Ring Plunger
Item #: 87882023
Brand: Vlier
Model #: PRSNM6P
Product Specifications
| Thread Size | M6x1.0 |
| Thread Length (mm) | 7.87 |
| Thread Length (Decimal Inch) | 0.3100 |
| Plunger Type | Non-Locking |
| Body Length (mm) | 11.00 |
| Body Length (Decimal Inch) | 0.4400 |
| Length Under Head (mm) | 8.00 |
| Length Under Head (Decimal Inch) | 0.3100 |
| Plunger Projection (mm) | 5.00 |
| Plunger Projection (Decimal Inch) | 0.1900 |
| Plunger Diameter (mm) | 4.00 |
| Plunger Diameter (Decimal Inch) | 0.1600 |
| Locking Element | Yes |
| Initial End Force (N) | 2.20 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (N) | 8.90 |
| Final End Force (Lb.) | 2.00 |
| Plunger Length (mm) | 15.75 |
| Plunger Length (Decimal Inch) | 0.6200 |
| Ring Diameter (mm) | 19.00 |
| Ring Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.1300 |
| Head Height (mm) | 3.30 |
| Hex Size (mm) | 6.00 |
| Material | Steel |
