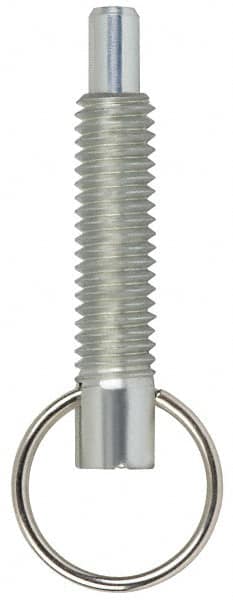

Vlier - M10x1.5, 1.2" Thread Length, 6mm Plunger Diam, 9.5mm Plunger Projection, 9 N Init to 17.8 N Final End Force, Stainless Steel Locking Pull Ring Plunger
Item #: 87882049
Brand: Vlier
Model #: SPRM10P
Product Specifications
| Thread Size | M10x1.5 |
| Thread Length (mm) | 30.48 |
| Thread Length (Decimal Inch) | 1.2000 |
| Plunger Type | Locking |
| Body Length (mm) | 43.00 |
| Length Under Head (mm) | 35.50 |
| Plunger Projection (mm) | 9.50 |
| Plunger Diameter (mm) | 6.00 |
| Locking Element | Yes |
| Initial End Force (N) | 9.00 |
| Final End Force (N) | 17.80 |
| Plunger Length (mm) | 43.18 |
| Plunger Length (Decimal Inch) | 1.7000 |
| Ring Diameter (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.5000 |
| Head Height (mm) | 12.70 |
| Material | Stainless Steel |
