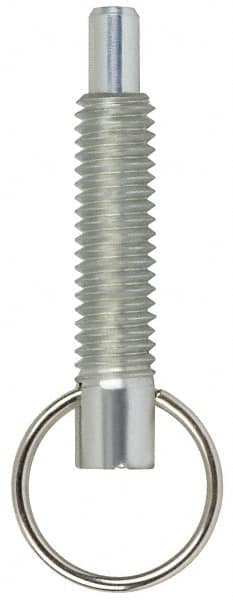

Vlier - M12x1.75, 1.4" Thread Length, 8mm Plunger Diam, 12.7mm Plunger Projection, 11 N Init to 22 N Final End Force, Stainless Steel Locking Pull Ring Plunger
Item #: 87882064
Brand: Vlier
Model #: SPRM12P
Product Specifications
| Thread Size | M12x1.75 |
| Thread Length (mm) | 35.56 |
| Thread Length (Decimal Inch) | 1.4000 |
| Plunger Type | Locking |
| Body Length (mm) | 51.00 |
| Length Under Head (mm) | 35.56 |
| Plunger Projection (mm) | 12.70 |
| Plunger Diameter (mm) | 8.00 |
| Locking Element | Yes |
| Initial End Force (N) | 11.00 |
| Final End Force (N) | 22.00 |
| Plunger Length (mm) | 50.80 |
| Plunger Length (Decimal Inch) | 2.0000 |
| Ring Diameter (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.6000 |
| Head Height (mm) | 15.24 |
| Material | Stainless Steel |
