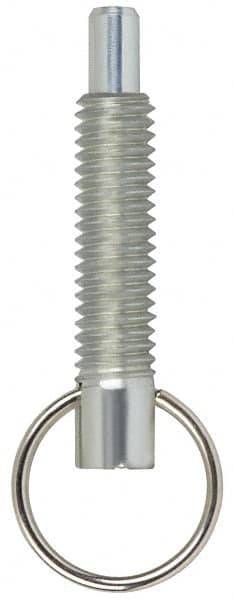

Vlier - M6x1.0, 0.8" Thread Length, 4mm Plunger Diam, 6.4mm Plunger Projection, 4.4 N Init to 11 N Final End Force, Stainless Steel Locking Pull Ring Plunger
Item #: 87882114
Brand: Vlier
Model #: SPRM6P
Product Specifications
| Thread Size | M6x1.0 |
| Thread Length (mm) | 20.32 |
| Thread Length (Decimal Inch) | 0.8000 |
| Plunger Type | Locking |
| Body Length (mm) | 29.00 |
| Length Under Head (mm) | 20.30 |
| Plunger Projection (mm) | 6.40 |
| Plunger Diameter (mm) | 4.00 |
| Locking Element | Yes |
| Initial End Force (N) | 4.40 |
| Final End Force (N) | 11.00 |
| Plunger Length (mm) | 27.94 |
| Plunger Length (Decimal Inch) | 1.1000 |
| Ring Diameter (mm) | 16.00 |
| Head Height (Decimal Inch) | 0.3000 |
| Head Height (mm) | 7.62 |
| Material | Stainless Steel |
