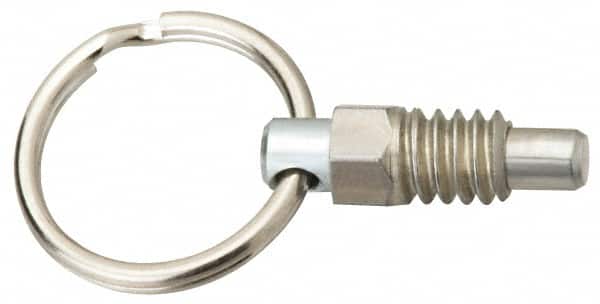

Vlier - M10x1.5, 0.31" Thread Length, 1/4" Plunger Diam, 0.28" Plunger Projection, 0.75 Lb Init to 3 Lb Final End Force, Stainless Steel Pull Ring Plunger
Item #: 87882122
Brand: Vlier
Model #: SPRSNM10
Product Specifications
| Thread Size | M10x1.5 |
| Thread Length (mm) | 7.87 |
| Thread Length (Decimal Inch) | 0.3100 |
| Plunger Type | Non-Locking |
| Body Length (mm) | 16.00 |
| Body Length (Decimal Inch) | 0.6300 |
| Length Under Head (mm) | 11.00 |
| Length Under Head (Decimal Inch) | 0.4400 |
| Plunger Projection (mm) | 7.00 |
| Plunger Projection (Decimal Inch) | 0.2800 |
| Plunger Diameter (mm) | 6.00 |
| Plunger Diameter (Decimal Inch) | 0.2500 |
| Locking Element | No |
| Initial End Force (N) | 3.30 |
| Initial End Force (Lb.) | 0.75 |
| Final End Force (N) | 13.30 |
| Final End Force (Lb.) | 3.00 |
| Plunger Length (mm) | 20.83 |
| Plunger Length (Decimal Inch) | 0.8200 |
| Ring Diameter (mm) | 19.00 |
| Ring Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.1900 |
| Head Height (mm) | 4.83 |
| Hex Size (mm) | 10.00 |
| Material | Stainless Steel |
