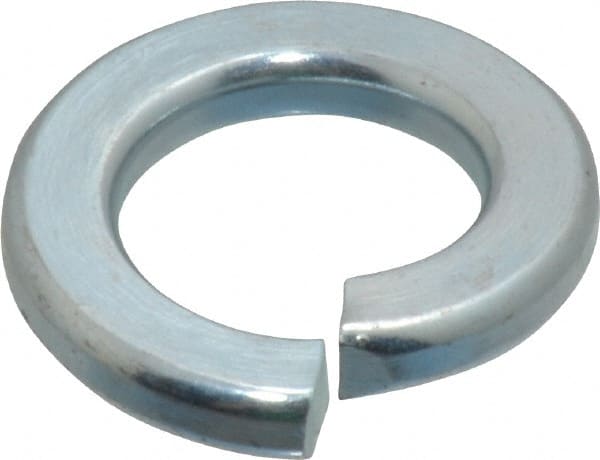

Value Collection - 5/8", 0.156" Thick Split Lock Washer - Alloy Steel, Zinc-Plated Finish, 0.628" Min ID, 0.641" Max ID, 1.073" Min OD, 1.079" Max OD
Item #: 87920393
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/8 |
| Material | Alloy Steel |
| Finish/Coating | Zinc-Plated |
| Thickness (Decimal Inch) | 0.1560 |
| Minimum Inside Diameter (Decimal Inch) | 0.6280 |
| Maximum Inside Diameter (Decimal Inch) | 0.6410 |
| Minimum Outside Diameter (Decimal Inch) | 1.0730 |
| Maximum Outside Diameter (Decimal Inch) | 1.0790 |
| Military Specification | Does Not Meet Military Specifications |
