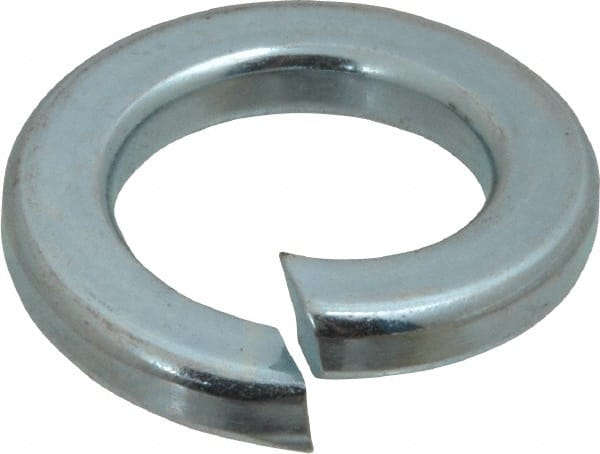

Value Collection - 7/8", 0.219" Thick Split Lock Washer - Alloy Steel, Zinc-Plated Finish, 0.878" Min ID, 0.894" Max ID, 1.459" Min OD, 1.464" Max OD
Item #: 87920419
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 7/8 |
| Material | Alloy Steel |
| Finish/Coating | Zinc-Plated |
| Thickness (Decimal Inch) | 0.2190 |
| Minimum Inside Diameter (Decimal Inch) | 0.8780 |
| Maximum Inside Diameter (Decimal Inch) | 0.8940 |
| Minimum Outside Diameter (Decimal Inch) | 1.4590 |
| Maximum Outside Diameter (Decimal Inch) | 1.4640 |
| Military Specification | Does Not Meet Military Specifications |
