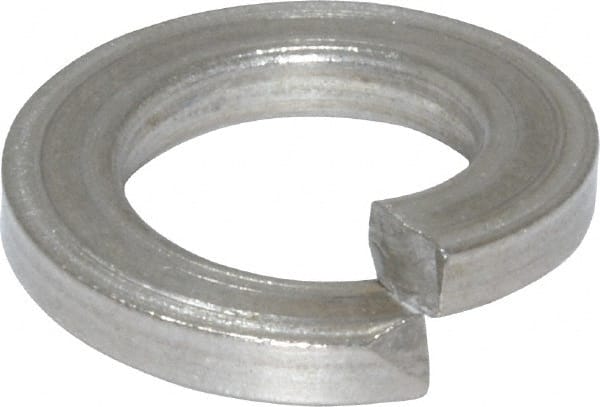

Value Collection - 1/2", 1/8" Thick Split Lock Washer - 18-8 Stainless Steel, 0.502" Min ID, 0.512" Max ID, 0.869" Max OD
Item #: 87925202
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1/2 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Thickness (Decimal Inch) | 0.1250 |
| Minimum Inside Diameter (Decimal Inch) | 0.5020 |
| Maximum Inside Diameter (Decimal Inch) | 0.5120 |
| Minimum Outside Diameter (Decimal Inch) | 0.8730 |
| Maximum Outside Diameter (Decimal Inch) | 0.8690 |
| Military Specification | Does Not Meet Military Specifications |
