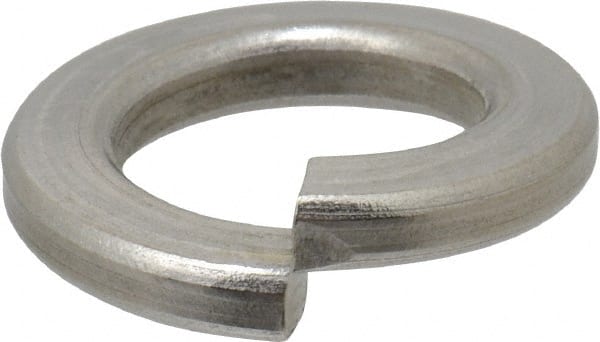

Value Collection - 3/4", 0.188" Thick Split Lock Washer - 18-8 Stainless Steel, 0.76" Min ID, 0.775" Max ID, 1.271" Min OD, 1.291" Max OD
Item #: 87925228
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 3/4 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Thickness (Decimal Inch) | 0.1880 |
| Minimum Inside Diameter (Decimal Inch) | 0.7600 |
| Maximum Inside Diameter (Decimal Inch) | 0.7750 |
| Minimum Outside Diameter (Decimal Inch) | 1.2710 |
| Maximum Outside Diameter (Decimal Inch) | 1.2910 |
| Military Specification | Does Not Meet Military Specifications |
