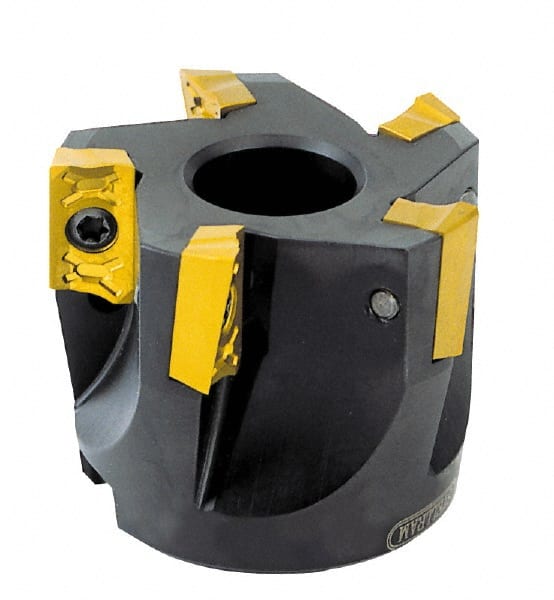

Kennametal - 2-1/2" Cut Diam, 3/4" Arbor Hole, 0.3" Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 5 Inserts, OD 04 Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series 7745 VOD 04
Item #: 87927752
Brand: Kennametal
Model #: 5673289
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | OD 04 |
| Series | 7745 VOD 04 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3000 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.8100 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
