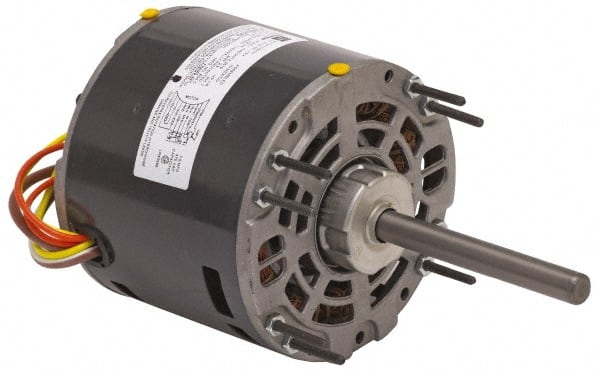

US Motors - 1/6 hp, ODP Enclosure, Auto Thermal Protection, 1,650 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 42 Frame, Stud Mount, 1 Speed, Ball Bearings, 2.7 Full Load Amps, B Class Insulation, CW Lead End
Item #: 87956124
Brand: US Motors
Model #: 4742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/6 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1650 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 42 |
| Mount Type | Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 2.7 |
| Insulation Class | B |
| Full Load Efficiency Rating | 54.00 |
| Motor Run Capacitor Micro Farid | 7.50 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
