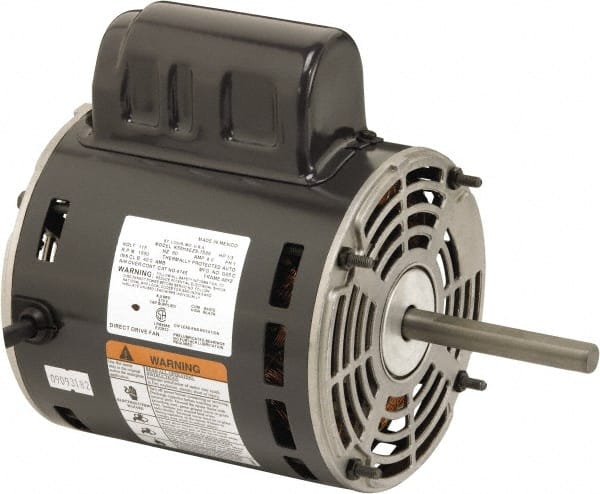

US Motors - 3/4 hp, ODP Enclosure, Auto Thermal Protection, 1,100 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 1 Speed, Ball Bearings, 10.0/5.0 Full Load Amps, B Class Insulation, CW Lead End
Item #: 87956207
Brand: US Motors
Model #: 4750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1100 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 10.0/5.0 |
| Insulation Class | B |
| Full Load Efficiency Rating | 71.90 |
| Motor Run Capacitor Micro Farid | 17.50 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
