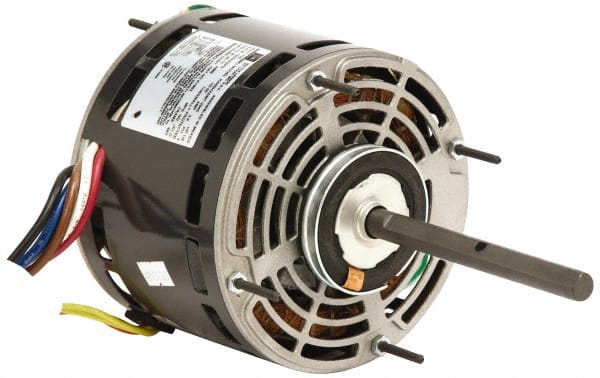

US Motors - 3/4 hp, OAO Enclosure, Auto Thermal Protection, 1,075 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 4 Speed, Ball Bearings, 10.6 Full Load Amps, B Class Insulation, CCW Lead End Rev
Item #: 87956272
Brand: US Motors
Model #: 5463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | OAO |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 4 |
| Bearing Type | Ball |
| Full Load Amperage | 10.6 |
| Insulation Class | B |
| Shaft Diameter x Length (Inch) | 1/2 x 5 |
| Full Load Efficiency Rating | 66.30 |
| Motor Run Capacitor Micro Farid | 15 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End Rev |
| PSC Code | 6105 |
