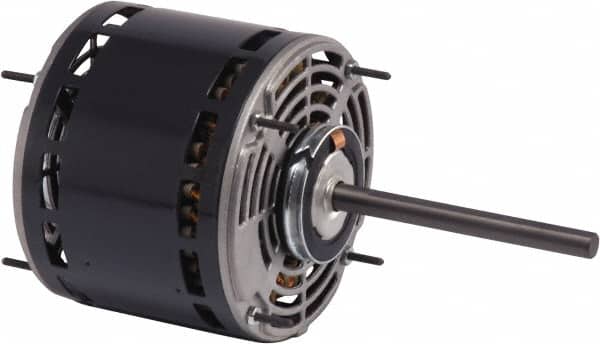

US Motors - 1/3 hp, ODP Enclosure, Auto Thermal Protection, 825 RPM, 208/230 Volt, 50 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Band Mount, 2 Speed, SAB/Sleeve Bearings, 2.8 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 87956306
Brand: US Motors
Model #: 5469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 825 |
| Voltage | 208/230 |
| Frequency Hz | 50 |
| Frame Size | 48 |
| Mount Type | Band |
| Number of Speeds | 2 |
| Bearing Type | SAB/Sleeve |
| Full Load Amperage | 2.8 |
| Insulation Class | B |
| Shaft Diameter x Length (Inch) | 1/2 x 2-1/4 |
| Full Load Efficiency Rating | 63.30 |
| Motor Run Capacitor Micro Farid | 10.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
