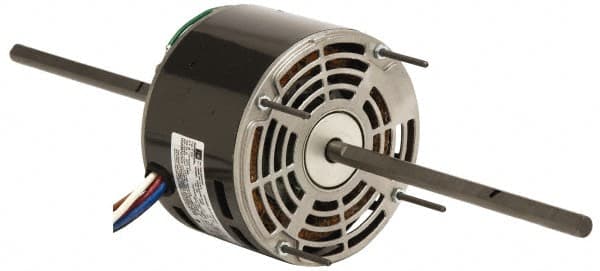

US Motors - 1/3 hp, ODP Enclosure, Auto Thermal Protection, 1,365 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 3 Speed, SAB Bearings, 2.7 Full Load Amps, A Class Insulation, CCW Lead End
Item #: 87956546
Brand: US Motors
Model #: 7024
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1365 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 3 |
| Bearing Type | SAB |
| Full Load Amperage | 2.7 |
| Insulation Class | A |
| Full Load Efficiency Rating | 62.90 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
