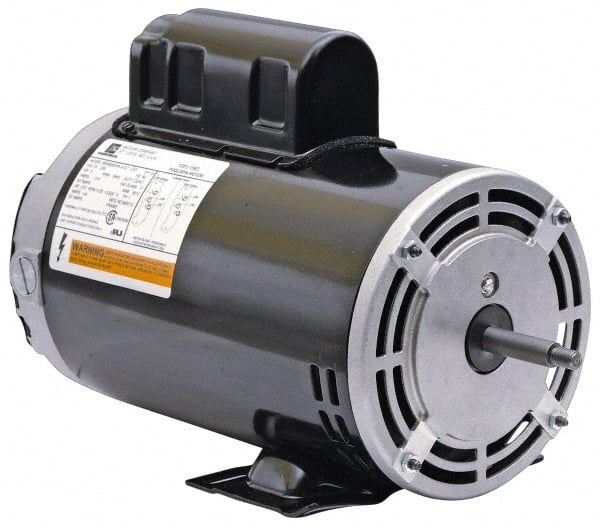

US Motors - 1.5 hp, ODP Enclosure, Auto Thermal Protection, 2,850 RPM, 220-240 Volt, 50 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Thru Bolt with Base Mount, 1 Speed, Ball Bearings, 7.8-8.0 Full Load Amps, F Class Insulation, CCW Drive End
Item #: 87956678
Brand: US Motors
Model #: AGH15FL150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 2850 |
| Voltage | 220-240 |
| Frequency Hz | 50 |
| Frame Size | 48 |
| Mount Type | Thru Bolt w/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 7.8-8.0 |
| Insulation Class | F |
| Full Load Efficiency Rating | 75.50 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
