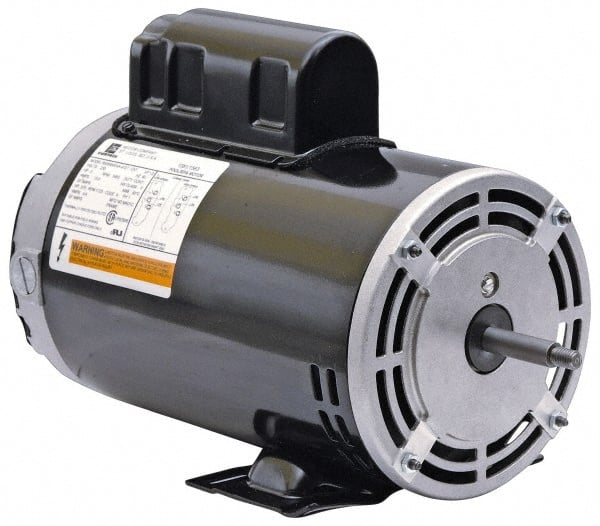

US Motors - 1.5 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Thru Bolt with Base Mount, 2 Speed, Ball Bearings, F Class Insulation, CCW Drive End
Item #: 87956686
Brand: US Motors
Model #: AGH15FL2CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Thru Bolt w/Base |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Insulation Class | F |
| Full Load Efficiency Rating | 53.30 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
