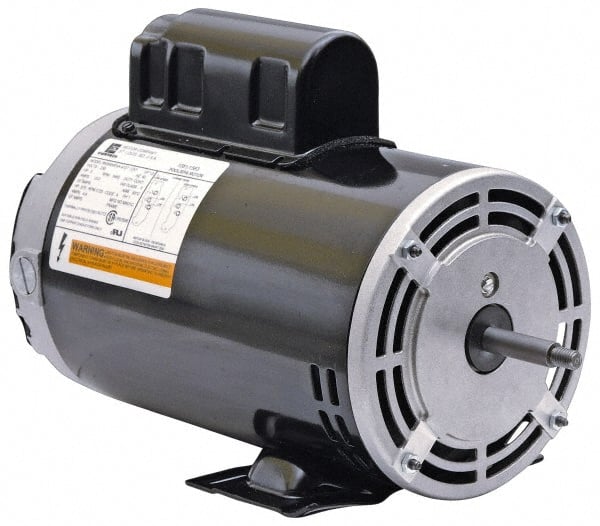

1.5 hp, ODP Enclosure, Auto Thermal Protection, 2,850 RPM, 220-240 Volt, 50 Hz, Industrial Electric AC/DC Motor Size 48 Frame, Thru Bolt with Base Mount, 2 Speed, Ball Bearings, 8.2-8.4/2.5-2.6 Full Load Amps, F Class Insulation, CCW Drive End
Item #: 87956694
Brand: US Motors
Model #: AGH15FL250
Product Specifications
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Enclosure Style | ODP |
| Name Plate RPMs | 2850 |
| Voltage | 220-240 |
| Frequency Hz | 50 Hz; 50 |
| Frame Size | 48 |
| Mount Type | Thru Bolt w/Base |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Full Load Amperage | 8.2-8.4/2.5-2.6 |
| Full Load Efficiency Rating | 51.20 |
| Service Factor Rating | 1.0 |
| Insulation Class | F |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
