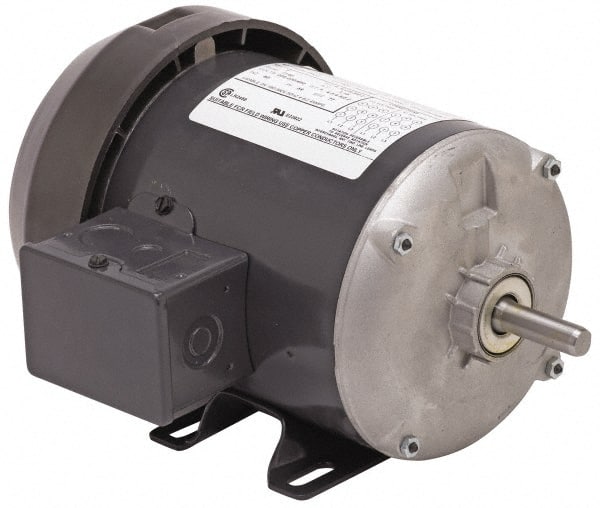

US Motors - 1/4 hp, ODP Enclosure, No Thermal Protection, 1,425 RPM, 110/220 Volt, 50 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Resilient Mount, 1 Speed, Sleeve Bearings, 6.8/3.4 Full Load Amps, B Class Insulation, CW Drive End Rev
Item #: 87957007
Brand: US Motors
Model #: D14B2L4A9
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/4 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1425 |
| Voltage | 110/220 |
| Frequency Hz | 50 |
| Frame Size | 48 |
| Mount Type | Resilient |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 6.8/3.4 |
| Insulation Class | B |
| Full Load Efficiency Rating | 54.70 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CW Drive End Rev |
| PSC Code | 6105 |
