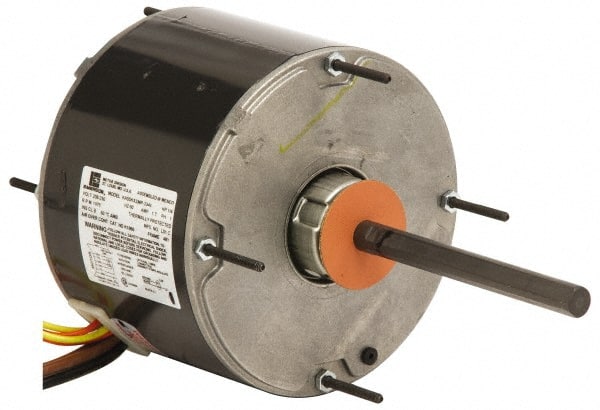

US Motors - 1/4 hp, ODP Enclosure, Auto Thermal Protection, 1,350 RPM, 230 Volt, 50 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Bracket Mount, 1 Speed, SAB/Sleeve Bearings, 1.9 Full Load Amps, A Class Insulation, CW Lead End
Item #: 87957411
Brand: US Motors
Model #: 8330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1350 |
| Voltage | 230 |
| Frequency Hz | 50 |
| Frame Size | 48 |
| Mount Type | Bracket |
| Number of Speeds | 1 |
| Bearing Type | SAB/Sleeve |
| Full Load Amperage | 1.9 |
| Insulation Class | A |
| Full Load Efficiency Rating | 65.70 |
| Motor Run Capacitor Micro Farid | 4.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
