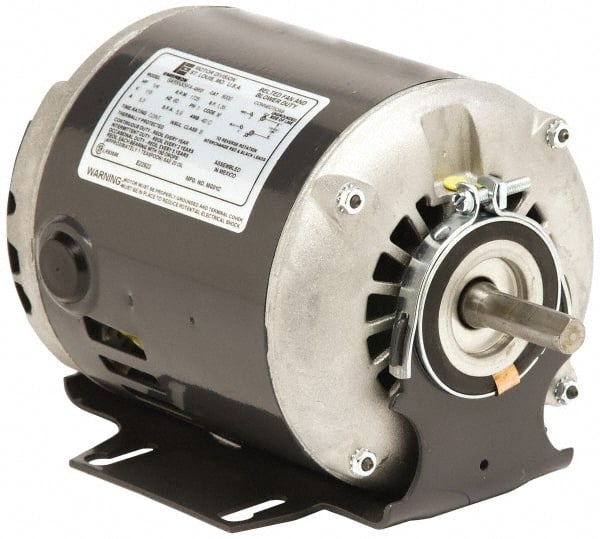

US Motors - 1/4 hp, ODP Enclosure, Auto Thermal Protection, 1,725 RPM, 115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Resilient Mount, 1 Speed, Sleeve Bearings, 5.3 Full Load Amps, B Class Insulation, Reversible
Item #: 87957429
Brand: US Motors
Model #: 840CV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Resilient |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 5.3 |
| Insulation Class | B |
| Shaft Diameter x Length (Inch) | 1/2 x 1-1/2 |
| Full Load Efficiency Rating | 51.00 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.35 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
