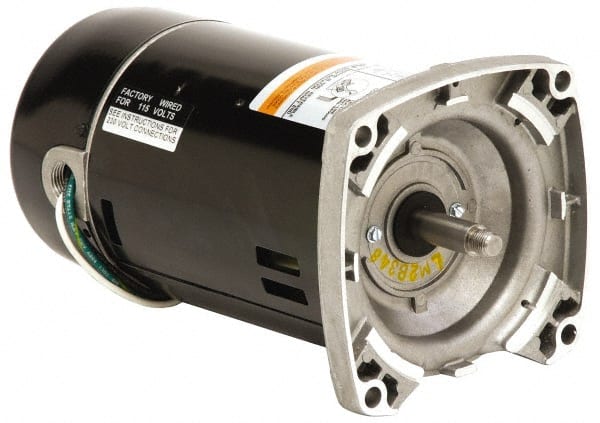

US Motors - 1 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 208-230/115 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Square Flange Mount, 1 Speed, Ball Bearings, B Class Insulation, CCW Drive End
Item #: 87958369
Brand: US Motors
Model #: EB841
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 208-230/115 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Square Flange |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Insulation Class | B |
| Full Load Efficiency Rating | 79.70 |
| Motor Run Capacitor Micro Farid | 50.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.65 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
