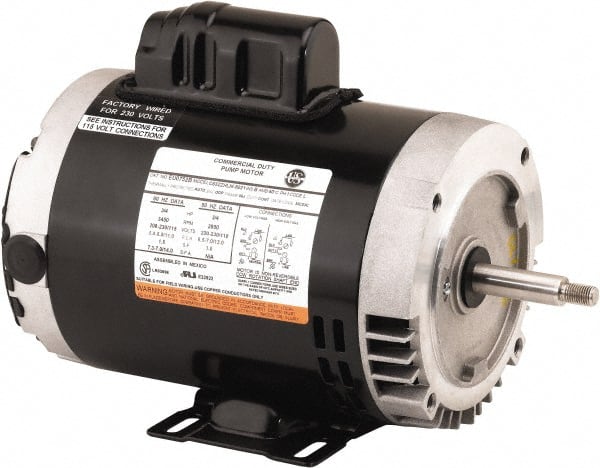

US Motors - 3 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, J-Face/Rem Base Mount, 1 Speed, Ball Bearings, 14.0-12.8 Full Load Amps, B Class Insulation, CCW Drive End
Item #: 87959151
Brand: US Motors
Model #: EU3002B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | J-Face/Rem Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 14.0-12.8 |
| Insulation Class | B |
| Full Load Efficiency Rating | 85.70 |
| Motor Run Capacitor Micro Farid | 35.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
