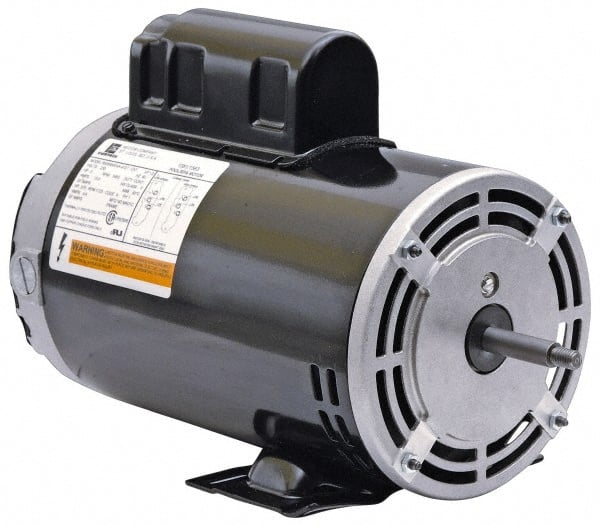

US Motors - 2 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Thru Bolt with Base Mount, 2 Speed, Ball Bearings, 8.6/3.4 Full Load Amps, F Class Insulation, CCW Shaft End
Item #: 87959706
Brand: US Motors
Model #: SPH20FL2S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Mount Type | Thru Bolt w/Base |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Full Load Amperage | 8.6/3.4 |
| Insulation Class | F |
| Full Load Efficiency Rating | 80.00 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Shaft End |
| PSC Code | 6105 |
