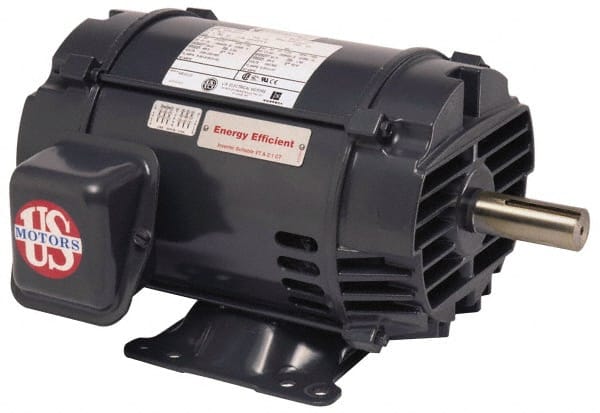

US Motors - 25 hp, ODP Enclosure, No Thermal Protection, 1,780 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 284 Frame, Rigid Mount, 1 Speed, Ball Bearings, 29.2 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 87961751
Brand: US Motors
Model #: D25P2CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | ODP |
| Horsepower | 25 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1780 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 284 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 29.2 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 23.5000 |
| Full Load Efficiency Rating | 94.1 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
