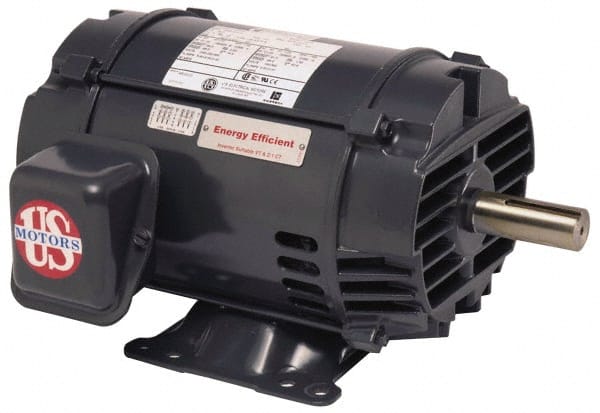

US Motors - 1 hp, ODP Enclosure, No Thermal Protection, 1,725 RPM, 200 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 145 Frame, Rigid Mount, 1 Speed, Ball Bearings, 0 Full Load Amps, B Class Insulation, Reversible
Item #: 87962080
Brand: US Motors
Model #: D2S2H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | ODP |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 200 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 0 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 13.1800 |
| Full Load Efficiency Rating | 86.8 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
