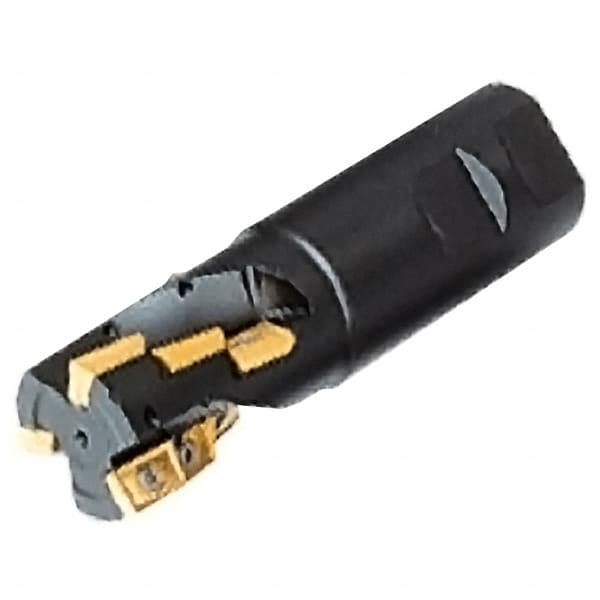

Iscar - 1-1/2" Cut Diam, 1.9" Max Depth of Cut, 1-1/4" Shank Diam, 4.7" OAL, Indexable Square Shoulder End Mill - 3M AXKT 1304... Inserts, Weldon Shank, Series Mill2000
Item #: 88027230
Brand: Iscar
Model #: 3101574
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.7000 |
| Series | Mill2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.9000 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 3M AXK-13 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 2.2000 |
| Weldon Flat | Yes |
| Insert Compatibility | 3M AXKT 1304... |
| Shank Length (Decimal Inch) | 2.5000 |
