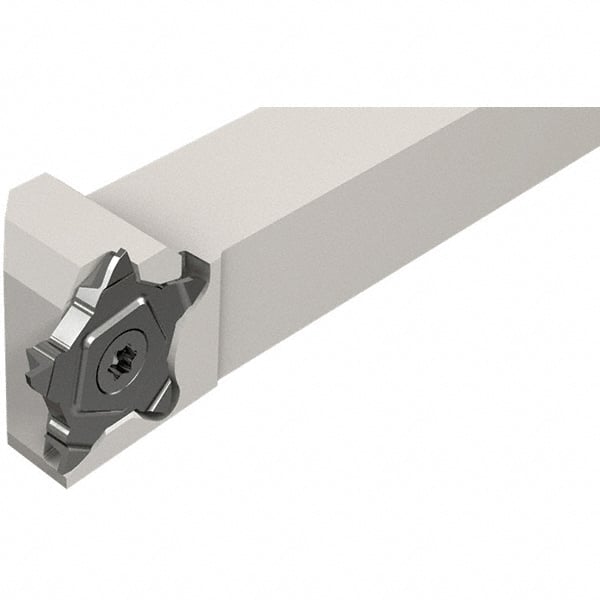

Iscar - External Thread, 0.77mm Max Cut of Depth, 5.3" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, Penta Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 88156559
Brand: Iscar
Model #: 2398783
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 0.77 |
| Overall Length (Decimal Inch) | 5.3000 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | Penta |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.2000 |
| Head Length (Decimal Inch) | 0.7700 |
