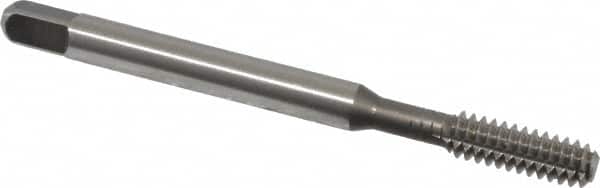

Kennametal - #10-24 UNC H4 Thread Limit Bottoming Thread Forming Tap - Vanadium High Speed Steel, Bright Finish, 2.38" OAL, 1/2" Thread Length, Right Hand Thread
Item #: 88178249
Brand: Kennametal
Model #: 4131977
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-24 |
| Thread Limit | H4 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Material | Vanadium High Speed Steel |
| Overall Length (Decimal Inch) | 2.3800 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.5000 |
| Neck Length (Decimal Inch) | 0.3750 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Non-Ferrous Metals |
