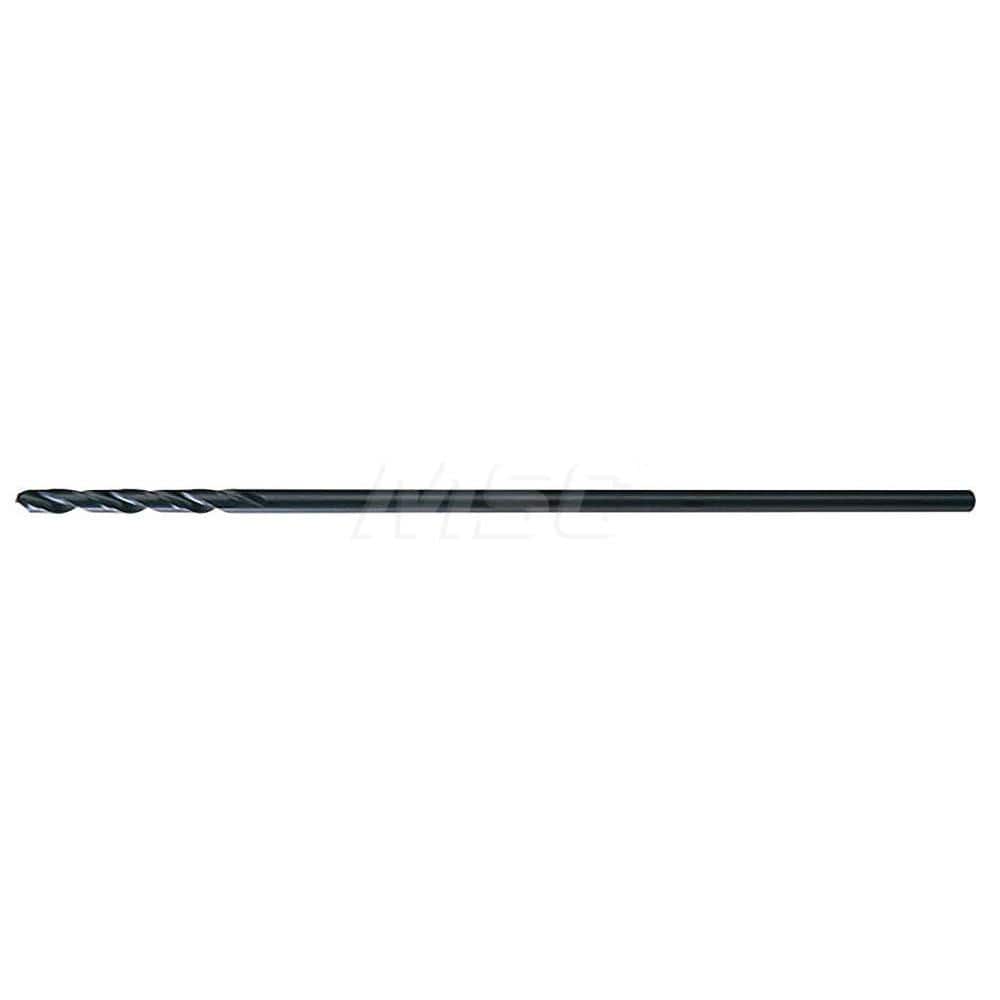

3/16″ Diam 2-5/16″ Flute Length 135° High Speed Steel Aircraft Extension Drill Oxide Finish, Straight-Cylindrical Shank, Split Point, Self-Centering, Series 912
Item #: 88214440
Brand: Chicago-Latrobe
Model #: 11104
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Overall Length (Inch) | 12 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Series | 912 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-5/16 |
| Flute Length (Decimal Inch) | 2.3125 |
| Cutting Direction | Right Hand |
| Self-Centering | Yes |
| Point Type | Split |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | NAS 907 Type B |
