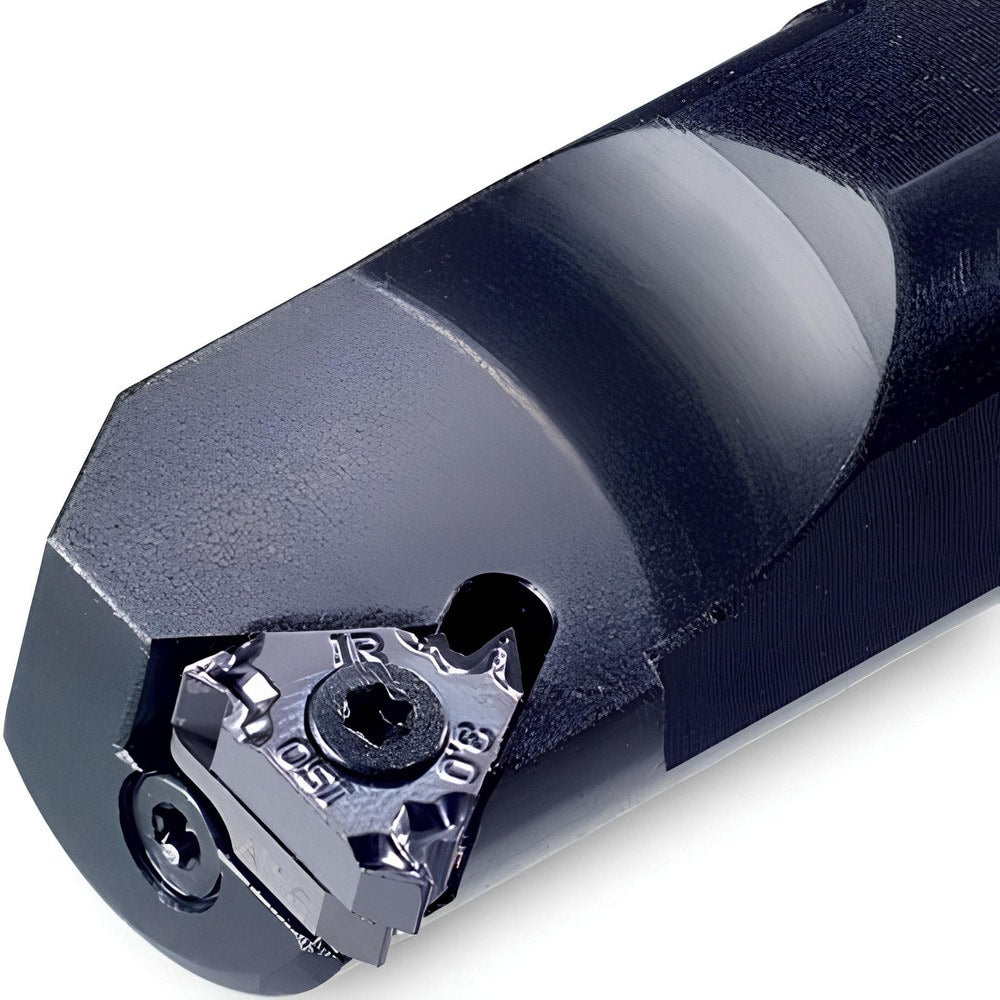

Brand: Ingersoll Cutting Tools / Part #: 3820072
Item #: 67470153
Brand: Ingersoll Cutting Tools
Model #: 3820072
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 27 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Toolholder Style | SIR |
| Insert Compatibility | 27IR |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Length (Inch) | 10 |
| Overall Length (Inch) | 10 |
| Minimum Bore Diameter (Decimal Inch) | 1.5600 |
| Series | SIR |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5050 |
| Center to Cutting Edge (Decimal Inch) | 0.8800 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Style | SIR |
| D -In-- | 1.2500 |
| Coolant Through | No |
