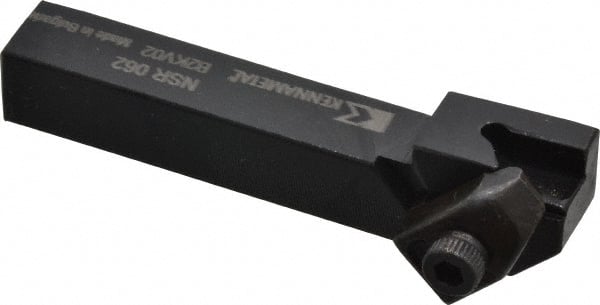

Kennametal - Internal/External Thread, Right Hand Cut, 3/8" Shank Width x 3/8" Shank Height Indexable Threading Toolholder - 2-1/2" OAL, N.2R Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 88228762
Brand: Kennametal
Model #: 1095583
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 9.53 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Shank Height (mm) | 9.53 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Overall Length (Inch) | 2-1/2 |
| Insert Compatibility | N.2R |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5620 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
