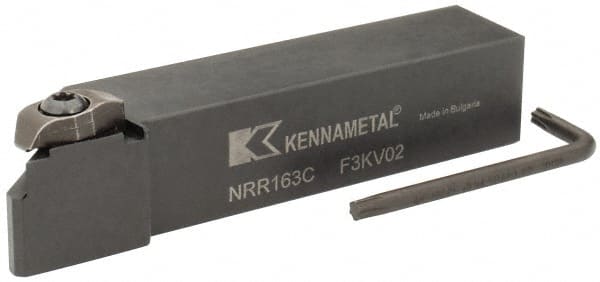

Kennametal - Internal/External Thread, Right Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 5" OAL, NU 3125L Insert Compatibility, NR Toolholder, Series Top Notch
Item #: 88229281
Brand: Kennametal
Model #: 1097580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | NU 3125L |
| Series | Top Notch |
| Toolholder Style | NR |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
