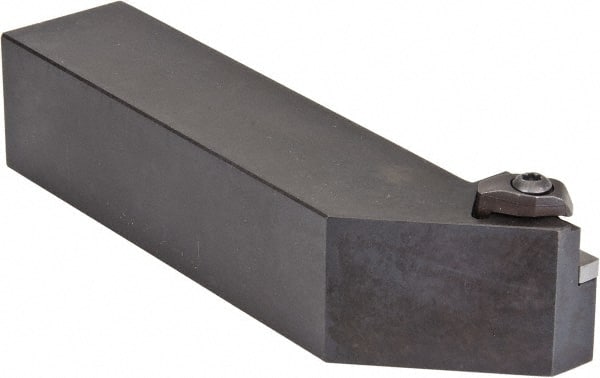

Kennametal - Internal/External Thread, Right Hand Cut, 1-1/2" Shank Width x 1-1/2" Shank Height Indexable Threading Toolholder - 7" OAL, N.4R Insert Compatibility, NS Toolholder, Series Top Notch
Item #: 88229364
Brand: Kennametal
Model #: 1097597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 38.10 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 177.80 |
| Overall Length (Inch) | 7 |
| Insert Compatibility | N.4R |
| Series | Top Notch |
| Toolholder Style | NS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 7.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2940 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
