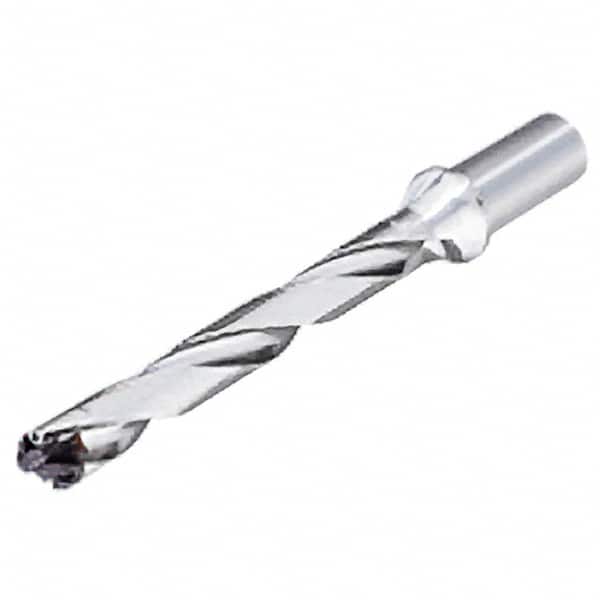

Iscar - 0.414" to 0.43" Diam, 8xD, 3.31" Max Depth, 0.63" Shank Diam, 5.84" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 10 Seat Size, 88289921 Toolholder, Series SumoCham
Item #: 88289921
Brand: Iscar
Model #: 3203216
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4140 |
| Maximum Drill Diameter (Decimal Inch) | 0.4300 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.3100 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 3.9500 |
| Overall Length (Decimal Inch) | 5.8400 |
| Shank Length (Decimal Inch) | 1.8900 |
