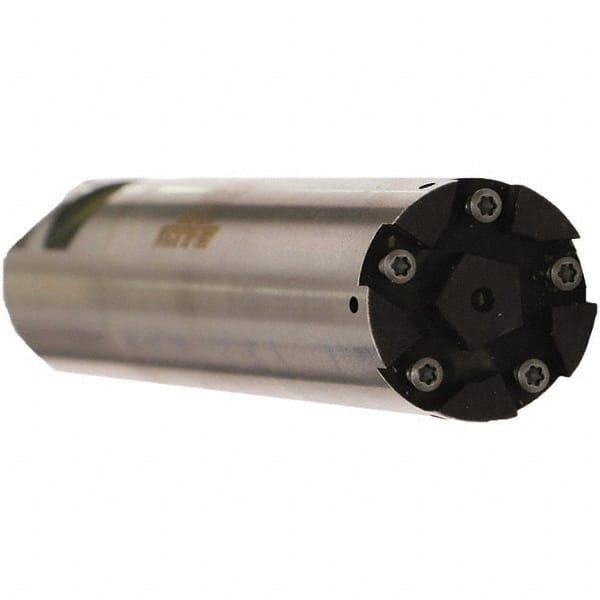

Emuge - 32.85mm Cut Diam, 115mm Max Hole Depth, 32mm Shank Diam, Internal Indexable Thread Mill - Insert Style GF6432, 3 Inserts, Toolholder Style GZ34, 177mm OAL
Item #: 88383195
Brand: Emuge
Model #: GZ341112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.85 |
| Cutting Diameter (Decimal Inch) | 1.2933 |
| Maximum Hole Depth (mm) | 115.00 |
| Maximum Hole Depth (Decimal Inch) | 4.5276 |
| Insert Style | GF6432 |
| Toolholder Style | GZ34 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 177.00 |
| Overall Length (Decimal Inch) | 6.9685 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
