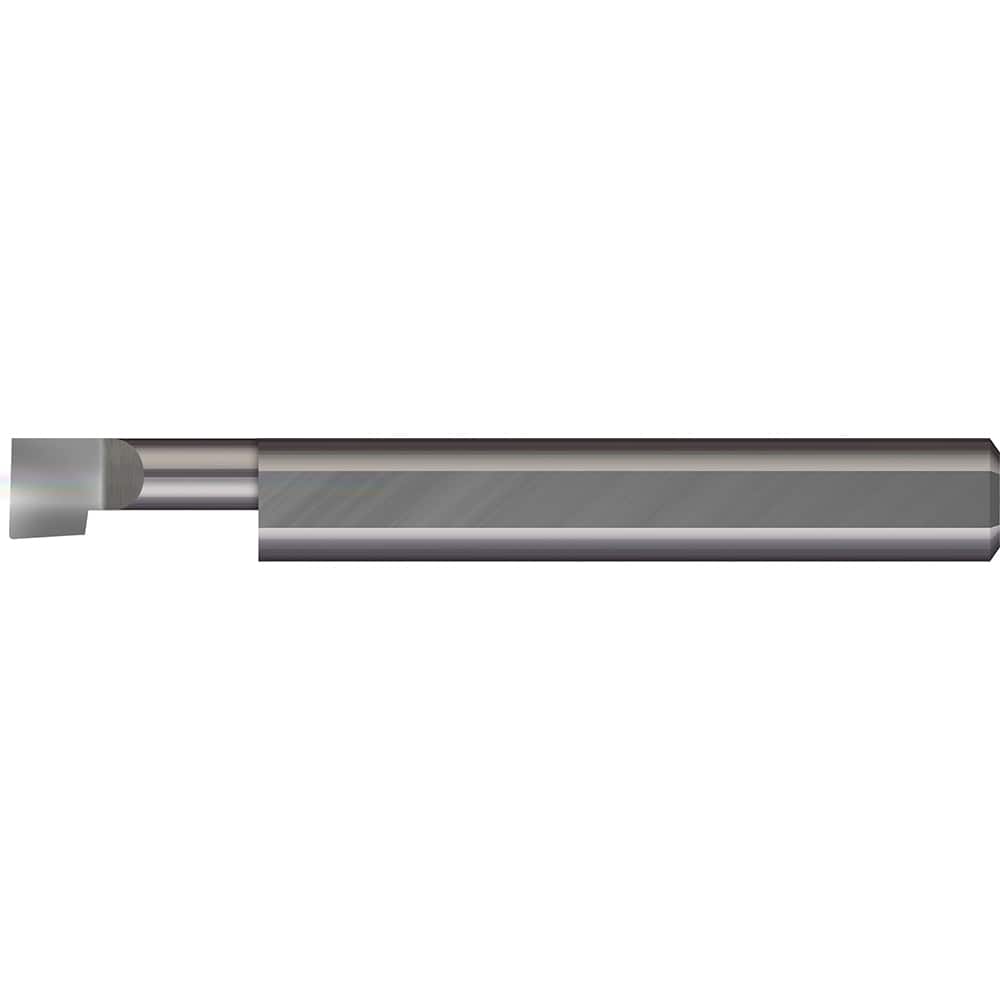

Boring Bar: 0.11″ Min Bore, 13/64″ Max Depth, Right Hand Cut, Solid Carbide 1/8″ Shank Dia, 1-1/2″ OAL, 0.003″ Corner Radius
Item #: 88399738
Brand: Micro 100
Model #: BB-110200
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1100 |
| Minimum Bore Diameter (mm) | 2.80 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.2000 |
| Shank Diameter (Decimal Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0030 |
| Corner Radius | 0.003 in |
| Maximum Bore Depth (Inch) | 13/64 |
| Offset (Decimal Inch) | 0.0475 |
| Overall Length (Decimal Inch) | 1.5000 |
