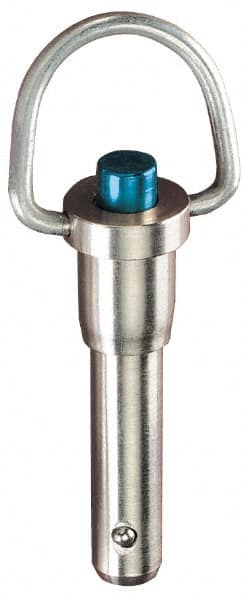

Jergens - 5/16" Diam, 2" Usable Length, Ring Handle, Push Button Quick Release Pin - 4" Overall Length, Grade 17-4 Stainless Steel, Passivated Finish
Item #: 88413182
Brand: Jergens
Model #: 800238
Exact Tooling IR#: 04
Features and Benefits
Push-button quick-release pins are positive-locking pins installed and removed through a simple push of a button.
Ring handle quick-release pins feature a half-circular ring that protrudes from the pin s head, which allows for a secure grip.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Push Button Quick Release Pin |
| Handle Type | Ring Handle |
| System of Measurement | Inch |
| Pin Diameter (Inch) | 5/16 |
| Usable Length (Inch) | 2 |
| Overall Length (Inch) | 4 |
| Pin Material | Stainless Steel |
| Pin Finish/Coating | Passivated |
| Pin Material Grade | 17-4 |
| Breaking Strength (Lb.) | 14400.00 |
| Breaking Strength Measurement | Double Shear |
| Ball Material | Stainless Steel |
| Ball Material Grade | 440C |
| Ball Hardness | RC 40 |
| Shank Hardness | RC 40 |
| Spindle Hardness | RC 40 |
| Fastener Standard | AMS-QQ-P-35; MIL-A-8625; MIL-C-5541; MIL-H-6875; QQ-P-416 |
| Handle Material | Aluminum |
