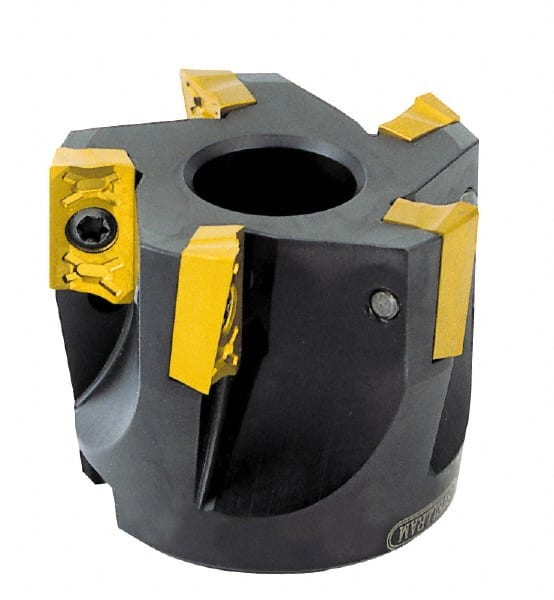

Kennametal - 3" Cut Diam, 1" Arbor Hole, 0.3" Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 9 Inserts, OD 04 Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series 7745 VOD 04
Item #: 88416854
Brand: Kennametal
Model #: 5672068
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 1.9600 |
| Insert Compatibility | OD 04 |
| Series | 7745 VOD 04 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3000 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Number of Flutes | 9 |
| Maximum Body Diameter (Decimal Inch) | 3.3100 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | ODET; ODMT; ODMW |
| Toolholder Material | Steel |
