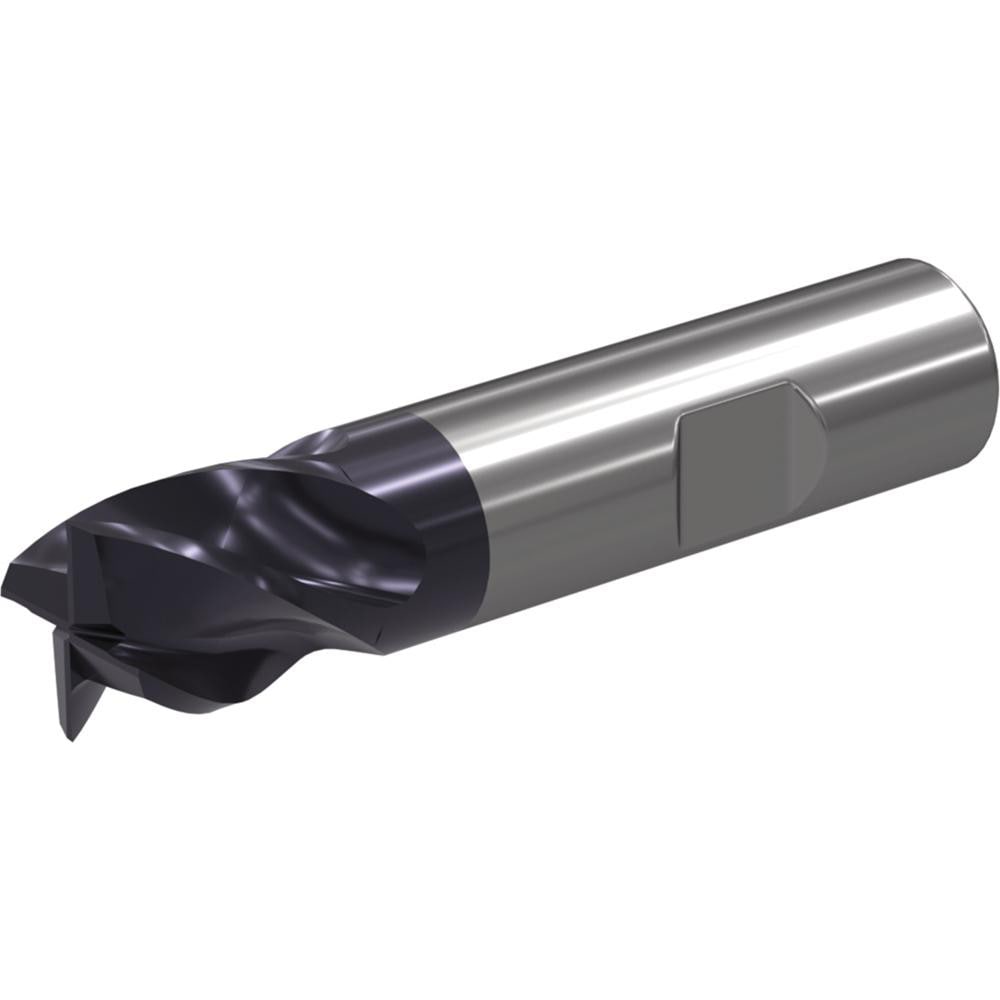

Brand: Widia / Part #: 6945699
Item #: 99008401
Brand: Widia
Model #: 6945699
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 7/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 37; 39 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 0.8750 |
| Material Grade | WU20PE |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Variable |
| Length Type | Regular |
| Through Coolant | No |
| Series | W401 |
