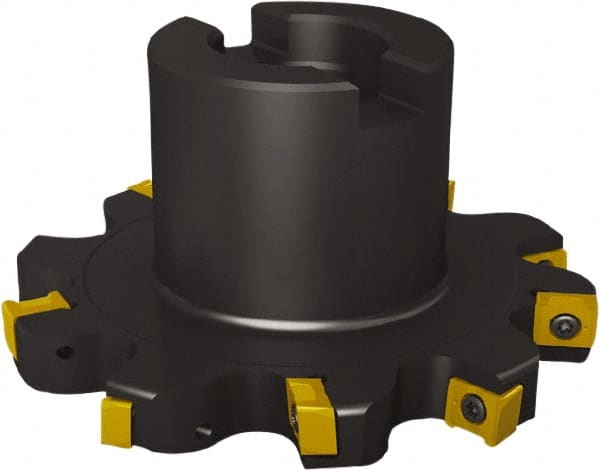

Seco - Shell Mount Connection, 5/8" Cutting Width, 0.56" Depth of Cut, 76.2mm Cutter Diam, 1" Hole Diam, 3 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK. 06.. Insert, Neutral Cutting Direction
Item #: 88495700
Brand: Seco
Model #: 21518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 15.88 |
| Cutting Width (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 14.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Cutter Diameter (mm) | 76.20 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 3 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK. 06.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 9 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 10500 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.2500 |
| Keyway Width (mm) | 6.35 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 3.0000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.18-03.00-0.62F-3N |
| Complete Insert Compatibility1 | LNK.06-F40M-M06; LNK.06-H25-E05; LNK.06-MK1500-M06; LNK.06-MK1500-MD08; LNK.06-MK2050-M06; LNK.06-MK2050-MD08; LNK.06-MM4500-M06; LNK.06-MP2500-M06; LNK.06-MP2500-MD08; LNK.06-MP3000-M06; LNK.06-T350M-M06 |
