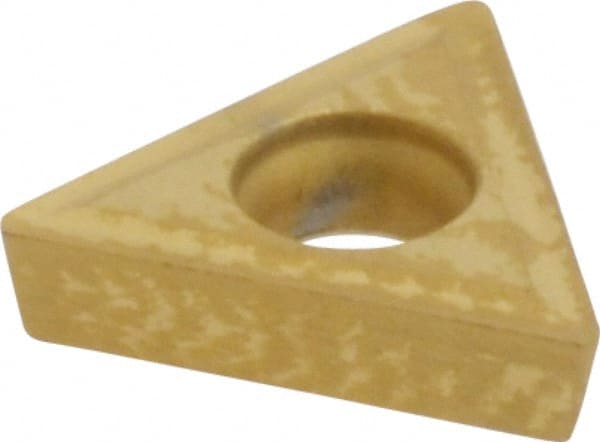

Interstate - TPGT21.51 Grade TCN55 Carbide Turning Insert - TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 88520051
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TCN55 |
| Coating | TiN |
| Material Grade | C5 |
| Hole Diameter (Decimal Inch) | 0.1230 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Primary Workpiece Material | P; M |
| Included Angle | 60 |
| Series | American Value |
| Insert Holding Method | Screw |
| Shape | Triangle |
