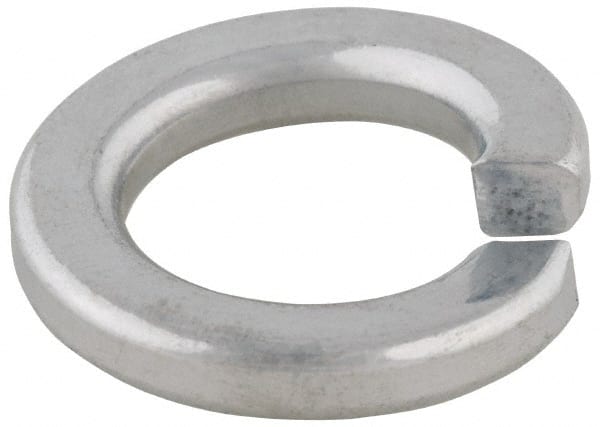

Value Collection - #8, 0.04" Thick Split Lock Washer - Grade 2 Steel, Zinc-Plated Finish, 0.167" Min ID, 0.174" Max ID, 0.25" Min OD, 0.294" Max OD
Item #: 88525092
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | #8 |
| Material | Steel |
| Material Grade | Grade 2 |
| Finish/Coating | Zinc-Plated |
| Thickness (Decimal Inch) | 0.0400 |
| Minimum Inside Diameter (Decimal Inch) | 0.1670 |
| Maximum Inside Diameter (Decimal Inch) | 0.1740 |
| Minimum Outside Diameter (Decimal Inch) | 0.2500 |
| Maximum Outside Diameter (Decimal Inch) | 0.2940 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.0550 |
