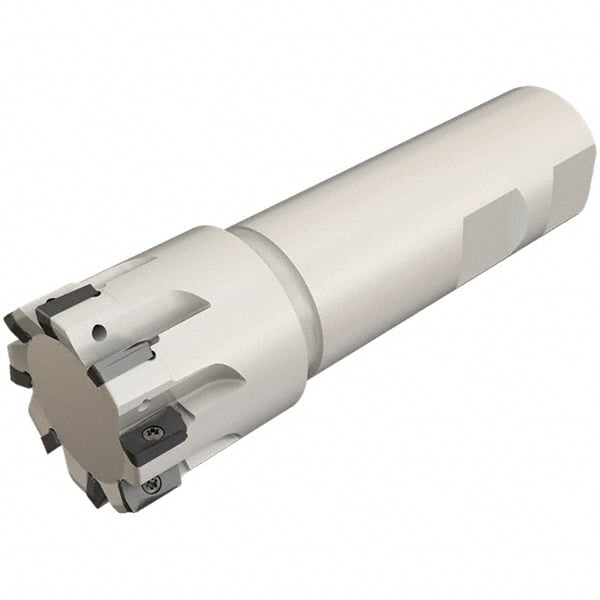

Iscar - 1" Cut Diam, 0.303" Max Depth of Cut, 3/4" Shank Diam, 4-1/2" OAL, Indexable Square Shoulder End Mill - HP ANKT 0702 .., HP ANCR 0702.., HP ANCT 0702.., HP ANKW 0702.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Heliplus
Item #: 88542071
Brand: Iscar
Model #: 3103740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 4.5000 |
| Lead Angle | 90 |
| Series | Heliplus |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HP E90AN-07 |
| Number of Flutes | 5 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | No |
| Insert Compatibility | HP ANKT 0702 .., HP ANCR 0702.., HP ANCT 0702.., HP ANKW 0702.. |
