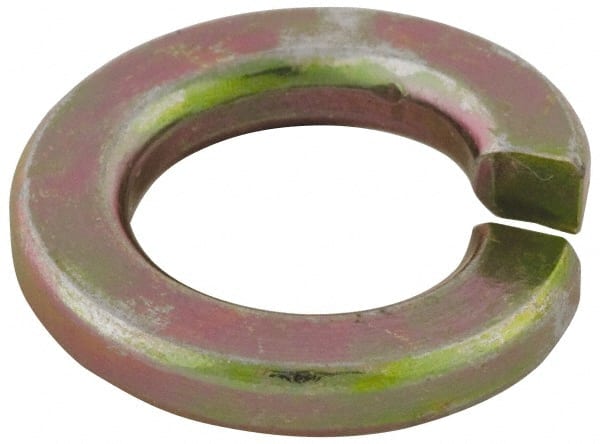

Value Collection - 3/8", 1/8" Thick Split Lock Washer - Alloy Steel, Uncoated, 0.382" Min ID, 0.393" Max ID, 0.553" Max OD
Item #: 88548052
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 3/8 |
| Material | Alloy Steel |
| Finish/Coating | Uncoated |
| Thickness (Decimal Inch) | 0.1250 |
| Minimum Inside Diameter (Decimal Inch) | 0.3820 |
| Maximum Inside Diameter (Decimal Inch) | 0.3930 |
| Maximum Outside Diameter (Decimal Inch) | 0.5530 |
| Military Specification | Does Not Meet Military Specifications |
