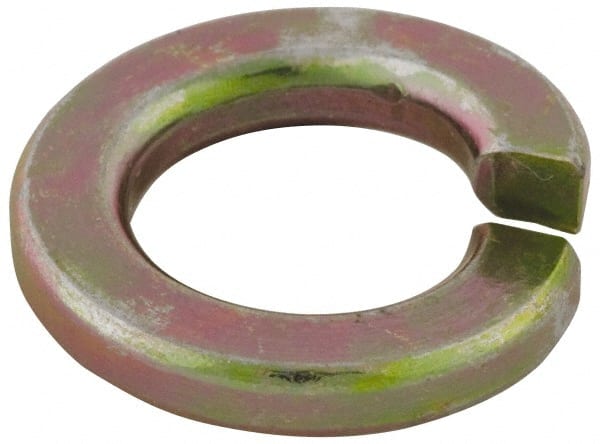

Value Collection - 7/16", 0.14" Thick Split Lock Washer - Alloy Steel, Uncoated, 0.443" Min ID, 0.455" Max ID, 0.647" Max OD
Item #: 88548060
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 7/16 |
| Material | Alloy Steel |
| Finish/Coating | Uncoated |
| Thickness (Decimal Inch) | 0.1400 |
| Minimum Inside Diameter (Decimal Inch) | 0.4430 |
| Maximum Inside Diameter (Decimal Inch) | 0.4550 |
| Maximum Outside Diameter (Decimal Inch) | 0.6470 |
| Military Specification | Does Not Meet Military Specifications |
