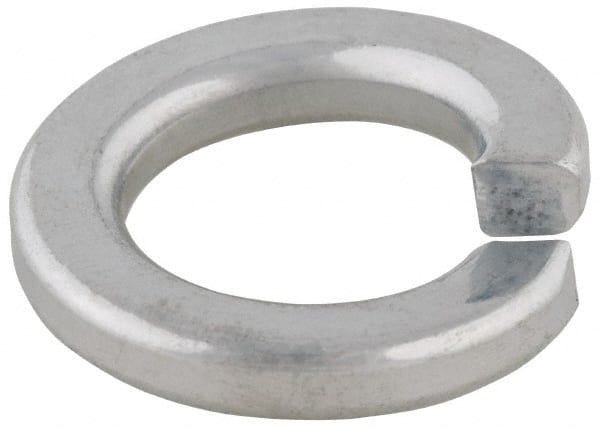

Made in USA - 5/8", 0.203" Thick Split Lock Washer - Alloy Steel, Uncoated, 0.635" Min ID, 0.65" Max ID, 0.923" Max OD
Item #: 88548698
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/8 |
| Material | Alloy Steel |
| Finish/Coating | Uncoated |
| Thickness (Decimal Inch) | 0.2030 |
| Minimum Inside Diameter (Decimal Inch) | 0.6350 |
| Maximum Inside Diameter (Decimal Inch) | 0.6500 |
| Maximum Outside Diameter (Decimal Inch) | 0.9230 |
| Military Specification | Does Not Meet Military Specifications |
