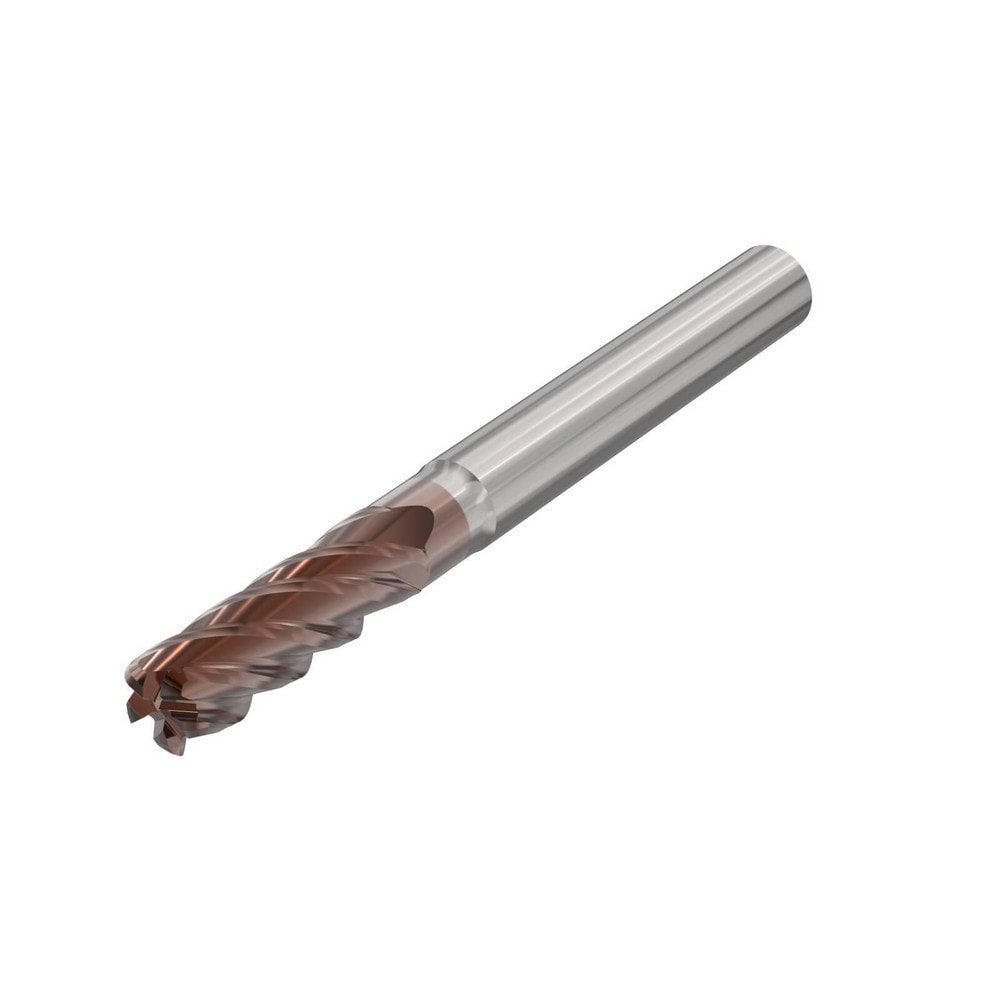

Corner Radius End Mill: 6.00 mm Dia, 19.00 mm LOC, 0.05 mm Radius, 5 Flute, Solid Carbide
Item #: 88619697
Brand: Seco
Model #: 10217826
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 19.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | HXT |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.05 |
| Overall Length (mm) | 65.00 |
| Coolant Through | No |
| Pitch | Variable |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 5.700 |
| Reach Length (mm) | 25.00 |
| Corner Radius Tolerance | -0.02/0.02 mm |
| Mill Diameter Tolerance | -0.032/-0.020 mm |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Series | JH730 |
| TIR Maximum (mm) | 0.01 |
| Material Application | Cobalt Chrome; Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholder |
| Helix Style | Variable |
| Manufacturers Catalog Number | 10217826 |
| Country of Origin | Netherlands |
